Cleanroom Equipment

Cleanroom Equipment

Cleanroom equipment is of utmost importance for its intended use in any cleanroom facility. All the equipment comes with a factory tested certificate and required documentation. All GMP products are manufactured under one roof and subsequently all metal finishes, assembly are completed in-house. As a result, specific requirements of client can be incorporated into a proposed design.

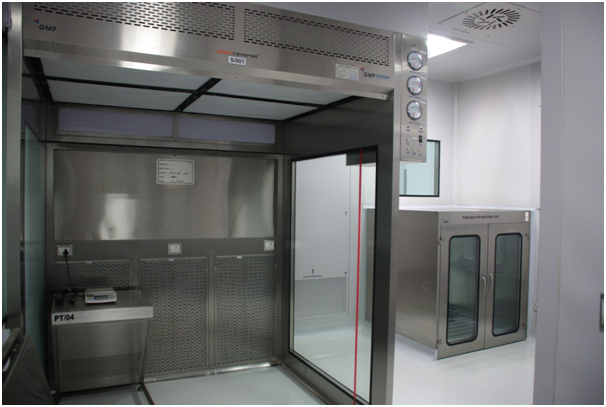

 GMP-CIPLA5922

In any pharmaceutical manufacturing facility it is essential to minimise man / material movement & avoid cross contamination between different classified areas to achieve desired classification & to maintain integrity of products & process.

The Passboxes are designed to allow material transfer without much personnel movement. It also ease controlling ingress of particulate contaminants into the cleanroom & between different classified areas.

General Specifications

  • Double Walled Construction
  • Doors with double walled flush glass view panels
  • SS Handles & SS hinges
  • Internal covings for easy cleaning
  • Electro-magnetic Interlocking
  • Door Release Switch on either side
  • Indicator on either side

Operating Conditions

  • POWER SUPPLY : 230V AC 1-Ø 50HZ
 fsdfsd

Standard Models

Model Work Area Dimension (L x W x H)
PT-18-18-18 450 x 450 x 450 mm
PT-24-24-24 610 x 610 x 610 mm

Options and Accessories

  • Mechanical Interlocking
  • Provision for ventilation with perforated grille
  • U. V. Light with Hour Meter with interlocking arrangement to put-off U.V. Light if either door opens
  • Three wall construction in case of floor mounting
  • Floor mounted contruction with three side wall structure & Door Drop Seal
  • Support stand to mount the pass box
  • Flange for sealing the gap between the pass box and the cleanroom wall

In any pharmaceutical manufacturing facility it is essential to minimise man / material movement & avoid cross contamination between different classified areas to achieve desired classification & to maintain integrity of products & process.

The Passboxes are designed to allow material transfer without much personnel movement. It also ease controlling ingress of particulate contaminants into the cleanroom & between different classified areas.

General Specifications

  • Two Stage filtration
    • EU6 – Prefilter (95% down to 5 micron)
    • EU14 - HEPA Filter – Supply (99.999% down to 0.3 micron)
  • Statically & Dynamically balanced Motor-blower with suspension arrangement to reduce noise level
  • Doors with double walled flush glass view panels
  • SS Handles & SS hinges
  • Internal covings for easy cleaning
  • Electro-magnetic Interlocking
  • Indicator on either side
  • Door Release Switch on either side
  • Differential Pressure Gauge : 1 No
  • On / Off Switch for Motor
  • DOP Test Port

Operating Conditions

  • Air cleanliness : ISO Class 5 (ISO 14644-1:1999 (E))
  • Air Velocities : 0.45 ± 0.05 mps
  • Air Flow : Vertical - Recirculatory
  • Noise Level : Less than 67 dB
  • Vibration Level : Minimum
  • POWER SUPPLY : 230V AC 1-Ø 50HZ

Standard Models

Model Work Area Dimension (L x W x H)
PT-18-18-18 450 x 450 x 450 mm
PT-24-24-24 610 x 610 x 610 mm

Options and Accessories

  • Mechanical Interlocking
  • U. V. Light with Hour Meter with interlocking arrangement to put-off U.V. Light if either door opens
  • Floor mounted contruction with three side wall structure & Door Drop Seal
  • Support Stand to mount the pass box
  • Flange for sealing the gap between the pass box and the cleanroom wall

Laminar Air Flows are designed to offer the highest product protection for samples and processes by providing ISO Class 5 particle free work area. The LAFs with various air-flow patterns offer proven protection for the samples and processes. The work area is continuously supplied with positive pressure HEPA filtered air flow.

General Specifications

  • Two Stage filtration
    • EU6 – Prefilter (95% down to 5 micron)
    • EU14 - HEPA Filter (99.999% down to 0.3 micron) at supply position
  • Statically & Dynamically balanced Motor-blower with suspension arrangement to reduce noise level
  • SS work table with due reinforcement
  • Glass side panels
  • Fluorescent Lights with Milky White Diffuser
  • Differential Pressure Gauge : 1 No
  • ON/OFF Switches
  • Clean Down Timer with Operation HOLD indicator
  • DOP Test Port
  • 5/15 Amp Switch Socket for external equipment
 vlaf

Operating Conditions

  • Air cleanliness : ISO Class 5 (ISO 14644-1:1999 (E))
  • Air Velocities : 0.45 ± 0.05 mps
  • Air Flow : Vertical
  • Noise Level : Less than 67 dB
  • Vibration Level : Minimum
  • Light intensity : > 300 lux
  • POWER SUPPLY : 230V AC 1-Ø 50HZ

Standard Models

Model Hepa Filter Area (L x W) Work Area Dimension (L x W x H)
HF-36-24-24 915 x 610 MM 915 x 610 x 610 MM
HF-48-24-24 1220 x 610 MM 1220 x 610 x 610 MM
HF-48-24-30 1220 x 760 MM 1220 x 610 x 760 MM
HF-48-30-30 1220 x 760 MM 1220 x 760 x 760 MM
HF-72-24-24 1830 x 610 MM 1830 x 610 x 610 MM

Options and Accessories

A wide range of configurations to suit any containment application :

  • Front doors (hinged/pneumatic cylinder)
  • U. V. Light with Hour Meter
  • Air / Gas Cock
  • Night Mode Operation
  • Velocity display with alarms (audible and visible)
  • Filter blocked alarms (audible and visible)
  • Explosion proof electrics for Flame-proof applications

Laminar Air Flows are designed to offer the highest product protection for samples and processes by providing ISO Class 5 particle free work area. The LAFs with various air-flow patterns offer proven protection for the samples and processes. The work area is continuously supplied with positive pressure HEPA filtered air flow.

General Specifications

  • Glass Side panels
  • Two Stage filtration
    • EU6 – Prefilters (95% down to 5 micron)
    • EU14 - HEPA Filter (99.999% down to 0.3 micron) at supply position
  • Statically & Dynamically balanced Motor-blower with suspension arrangement to reduce noise level
  • SS work table with due reinforcement
  • Fluorescent Lights with Milky White Diffuser
  • Differential Pressure Gauge : 1 No
  • ON/OFF Switches
  • Clean Down Timer with Operation HOLD indicator
  • DOP Test Port
  • 5/15 Amp Switch Socket for external equipment
 hlaf

Operating Conditions

  • Air cleanliness : ISO Class 5 (ISO 14644-1:1999 (E))
  • Air Velocities : 0.45 ± 0.05 mps
  • Air Flow : Horizontal
  • Noise Level : Less than 67 dB
  • Vibration Level : Minimum
  • Light intensity : > 300 lux
  • POWER SUPPLY : 230V AC 1-Ø 50HZ

Standard Models

Model Hepa Filter Area (L x W) Work Area Dimension (L x W x H)
HF-36-24-24 915 x 610 MM 915 x 610 x 610 MM
HF-48-24-24 1220 x 610 MM 1220 x 610 x 610 MM
HF-48-24-30 1220 x 760 MM 1220 x 610 x 760 MM
HF-48-30-30 1220 x 760 MM 1220 x 760 x 760 MM
HF-72-24-24 1830 x 610 MM 1830 x 610 x 610 MM

Options and Accessories

A wide range of configurations to suit any containment application :

  • Front doors (hinged/pneumatic cylinder)
  • U. V. Light with Hour Meter
  • Air / Gas Cock
  • Night Mode Operation
  • Filter blocked alarms (audible and visible)
  • Velocity display with alarms (audible and visible)
  • Explosion proof electrics for Flame-proof applications

Laminar Air Flows are designed to offer the highest product protection for samples and processes by providing ISO Class 5 particle free work area. The LAFs with various air-flow patterns offer proven protection for the samples and processes. The work area is continuously supplied with positive pressure HEPA filtered air flow.

General Specifications

  • Triple Stage filtration
    • EU4 - Prefilters (90% down to 10 micron)
    • EU7 - Intermediate Filter (95% down to 3 micron)
    • EU14 - HEPA Filter - Supply / Exhaust (99.999% down to 0.3 micron)
  • Statically & Dynamically balanced Motor-blower with suspension arrangement to reduce noise level
  • Double skin puff filled side panels
  • Horizontal internal Covings at base
  • Fluorescent Lights with Milky White Diffuser
  • Differential Pressure Gauges : 3 Nos
  • ON/OFF Switches
  • Clean Down Timer with Operation HOLD indicator
  • DOP Test Port5/15 Amp Sw
  • itch Socket for external equipment
 RLAF

Operating Conditions

  • Air cleanliness : ISO Class 5 (ISO 14644-1:1999 (E))
  • Air Velocities : 0.45 ± 0.05 mps
  • Air Flow : Vertical - Recirculatory
  • Noise Level : Less than 67 dB
  • Vibration Level : Minimum
  • Light intensity : > 300 lux
  • POWER SUPPLY : 230V AC 1-Ø 50HZ / 415V AC 3- Ø 50HZ

Standard Models

Model Hepa Filter Area (L x W) Work Area Dimension (L x W x H)
STRV-48-36 1220 x 915 MM 1220 x 915 x 2135 MM
STRV-48-48 1220 x 1220 MM 1220 x 1220 x 2135 MM
STRV-72-48 1830 x 1220 MM 1830 x 1220 x 2135 MM
STRV-72-72 1830 x 1830 MM 1830 x 1830 x 2135 MM
STRV-96-72 2440 x 1830 MM 2440 x 1830 x 2135 MM

Options and Accessories

A wide range of configurations to suit any containment application :

  • Double skin side panels with view windows
  • Stainless steel perforated grille for HEPA Filter
  • Front Anti Static PVC Curtains (for warehouse applications)
  • Front doors (hinged/sliding/rapid roller)
  • SS Stand alone table for keeping Weighing Scale
  • Sodium Vapor Lamps
  • Night Mode Operation
  • Velocity display with alarms (audible and visible)
  • Filter blocked alarms (audible and visible)
  • Explosion proof electrics for Flame - proof applications
  • PLC based Control System
  • Once-through airflow systems
  • Safe change Bag in / Bag out arrangement for filters

Mobile Trolley is designed for transporting sterile products under ISO Class 5 (Class 100) particle free work area. The work area is continuously supplied with positive pressure HEPA filtered recirculated horizontal air flow.

General Specifications

  • Two Stage filtration
    • EU6 – Prefilter (95% down to 5 micron) for return air & fresh air intake
    • EU14 - HEPA Filter (99.999% down to 0.3 micron) at supply position
  • Statically & Dynamically balanced Motor-blower with suspension arrangement to reduce noise level
  • Differential Pressure Gauge : 1 No.
  • SS 304 removable Shelves
  • SS 304 doors with double walled flush glass view panels
  • SS 304 handle for mobility
  • Battery back-up with inverter for 30 mins
  • PU coated Lockable castor wheels
  • ON/OFF Switches
  • DOP Test Port

Operating Conditions

  • Air cleanliness : ISO Class 5 (ISO 14644-1:1999 (E))
  • Air Velocities : 0.45 ± 0.05 mps
  • Air Flow : Horizontal
  • Noise Level : Less than 67 dB
  • Vibration Level : Minimum
  • POWER SUPPLY : 230V AC 1-Ø 50HZ

Standard Models

Model Work Area Dimension (L x W x H)
ST-24-24-24 610 x 610 x 610 MM
ST-24-24-36 610 x 610 x 915 MM

Options and Accessories

A wide range of configurations to suit any containment application :

  • Velocity display with alarms (audible and visible)
  • Filter blocked alarms (audible and visible)
  • Explosion proof electrics for Flame-proof applications
  • Blower tripping alarms (audible and visible)

Garment Storage Cabinet is designed to provide ISO Class 5 (Class 100) particle free work area to meet garment storage needs which avoids any particulate accumulation. The work area is continuously supplied with positive pressure HEPA filtered recirculated vertical / horizontal air flow.

General Specifications

  • Two Stage filtration
    • EU6 - Prefilter (95% down to 5 micron) for return air & fresh air intake
    • EU14 - HEPA Filter (99.999% down to 0.3 micron) at supply position
  • Statically & Dynamically balanced Motor-blower with suspension arrangement to reduce noise level
  • U. V. Light with Hour Meter with interlocking arrangement to put-off U.V. Light if either door opens
  • Differential Pressure Gauge : 1 No
  • SS 304 Hanging Arrangement / SS 304 removable Shelves
  • SS 304 doors with double walled flush glass view panelsHeater with thermostat
  • ON/OFF Switches
  • DOP Test Port
  • 5/15 Amp Switch Socket for external equipment

Options and Accessories

A wide range of configurations to suit any containment application :

  • Blower tripping alarms (audible and visible)
  • Velocity display with alarms (audible and visible)
  • Filter blocked alarms (audible and visible)
  • Explosion proof electrics for Flame-proof applications

Standard Models

Model Work Area Dimension (L x W x H)
PT-24-24-24 610 x 610 x 610 mm
SGH-24-24-36 610 x 610 x 915 MM
SGH-36-24-24 915 x 610 x 610 MM

Operating Conditions

  • Air cleanliness : ISO Class 5 (ISO 14644-1:1999 (E))
  • Air Velocities : 0.45 ± 0.05 mps
  • Air Flow : Vertical / Horizontal (Based on application)
  • Noise Level : Less than 67 dB
  • Vibration Level : Minimum
  • POWER SUPPLY : 230V AC 1-Ø 50HZ

Bio Safety Cabinet is designed to provide personnel, environmental and product protection. Air flow is drawn around the operator into the front grille of the cabinet, which provides personnel protection.

In addition, the downward laminar flow of HEPA-filtered air provides product protection by minimizing the chance of cross-contamination along the work surface of the cabinet. Because cabinet air passes through the exhaust HEPA filter, it is contaminant-free (environmental protection).

All Class II cabinets are designed for work involving microorganisms assigned to biosafety levels 1, 2 and 3. Class II cabinets provide the microbe-free work environment necessary for
cell culture propagation, and also may be used for the formulation of nonvolatile antineoplastic or hemotherapeutic drugs.

General Specifications

  • Two Stage filtration
    • EU6 - Intermediate Filter (95% down to 6 micron)
    • EU14 - HEPA Filter - Supply / Exhaust (99.999% down to 0.3 micron)
  • Statically & Dynamically balanced Motor-blower with suspension arrangement to reduce noise level
  • Double walled flushed Glass Side Panels
  • SS 304 work table with perforations at front & back which can be removed occasionally for cleaning purpose
  • 1-piece fully openable sliding toughened glass front door with counterweight arrangement
  • Sealed Fluorescent Lights with Milky White Diffuser
  • Differential Pressure Gauges : 2 Nos.
  • ON/OFF Switches for motor & Lights
  • Clean Down Timer with Operation HOLD indicator
  • Alarm triggers in case front door is raised more than 8” (i.e. safe clear opening during operation)
  • DOP Test Port
  • 5/15 Amp Switch Socket for external equipment
  • SS 304 stands with leveling lugs
  • SS 304 1 ft long elbow duct for exhaust

Operating Conditions

  • Air cleanliness : ISO Class 5 (ISO 14644-1:1999 (E))
  • Air Velocities : 0.45 ± 0.05 mps
  • Air Flow : Vertical - Recirculatory
  • Noise Level : Less than 67 dB
  • Vibration Level : Minimum
  • Light intensity : > 300 lux
  • POWER SUPPLY : 230V AC 1-Ø 50HZ / 415V AC 3-Ø 50HZ

Standard Models

Model Hepa Filter Area (L x W) Work Area Dimension (L x W x H)
BS-36-24-24 915 x 610 MM 915 x 610 x 610 MM
BS-36-24-24 1220 x 610 MM 1220 x 610 x 610 MM

Options and Accessories

A wide range of configurations to suit any containment application :

  • Night Mode Operation
  • Filter blocked alarms (audible and visible)
  • Velocity display with alarms (audible and visible)
  • Explosion proof electrics for Flame-proof applications
  • Once through System
  • Front doors with Glove arrangement
  • Transfer hatch for material movement
  • PLC based Control System
  • Safe change Bag in/Bag out arrangement for filters

Air Shower/Mist Shower is designed to supply Class 100 HEPA filtered air at high velocity to remove particulate matter from the person entering into the Clean Room.

General Specifications

  • Two Stage filtration
    • EU6 - Prefilter (95% down to 5 micron) for return air & fresh air intake
    • EU14 - HEPA Filter (99.999% down to 0.3 micron) at supply position
  • SS 304 doors with double walled flush glass view panels & door closer
  • Statically & Dynamically balanced Motor-blowers with suspension arrangement to reduce noise level for suction and booster
  • Differential Pressure Gauge : 1 No
  • ON/OFF Switches
  • DOP Test Port
  • 5/15 Amp Switch Socket for external equipment
  • Control Systems – to ensure that both the doors cannot open at the same time & to ensure that both the door will be locked during the time air flow is on
  • Timer for setting Air Shower operation time (settable for 30 seconds to 5 minutes)
  • Emergency STOP
  • Straight Entry – Straight Exit / 900 Door Opening
  • Automatic as well as Manual Mode
 air

Operating Conditions

  • Air cleanliness : ISO Class 5 (ISO 14644-1:1999 (E))
  • Air Velocities : 18 - 20 mps
  • Vibration Level : Minimum
  • POWER SUPPLY : 415V AC 3-Ø 50HZ

Standard Models

Model Work Area Dimension (L x W x H)
SJ-001 700 x 850 x 2000 MM
SJ-002 700 x 1200 x 2000 MM

GMP Products

GMP Services
