Office Partitions

Office Partitions

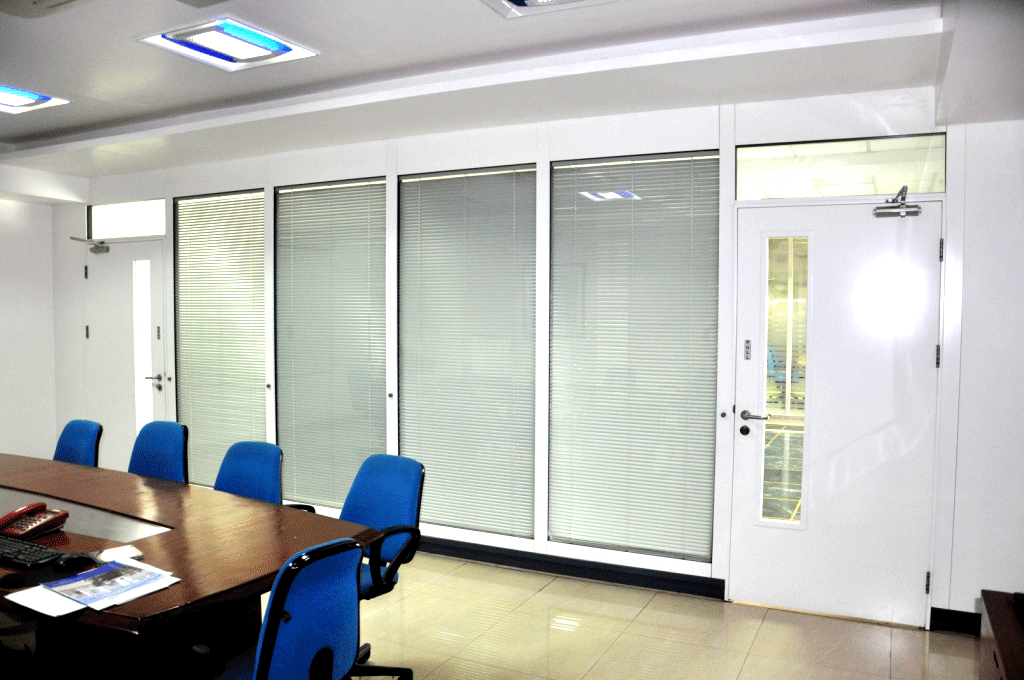

GMP also specializes in the supply and installation of office partitions. GMP office partitions are fully re-locatable and demountable mono-black systems. With the numerous design options available; flexible solutions can be offered to meet all client requirements. GMP has two ranges in office partitions:

  • Octa-P (Double Glazed Office Partitions)
  • Hexa-P (Single Glazed Office Partitions)

Our demountable office partition systems are suitable for all types of office applications and offer a diverse range of panel options. Panel options range from solid to mid, half and full height single glazed and mid, half and full height double glazing complete with integral venetian blinds.

Various aesthetic formats can be achieved employing standard details, with alternative jointing methods, finishes, skirting and head details.

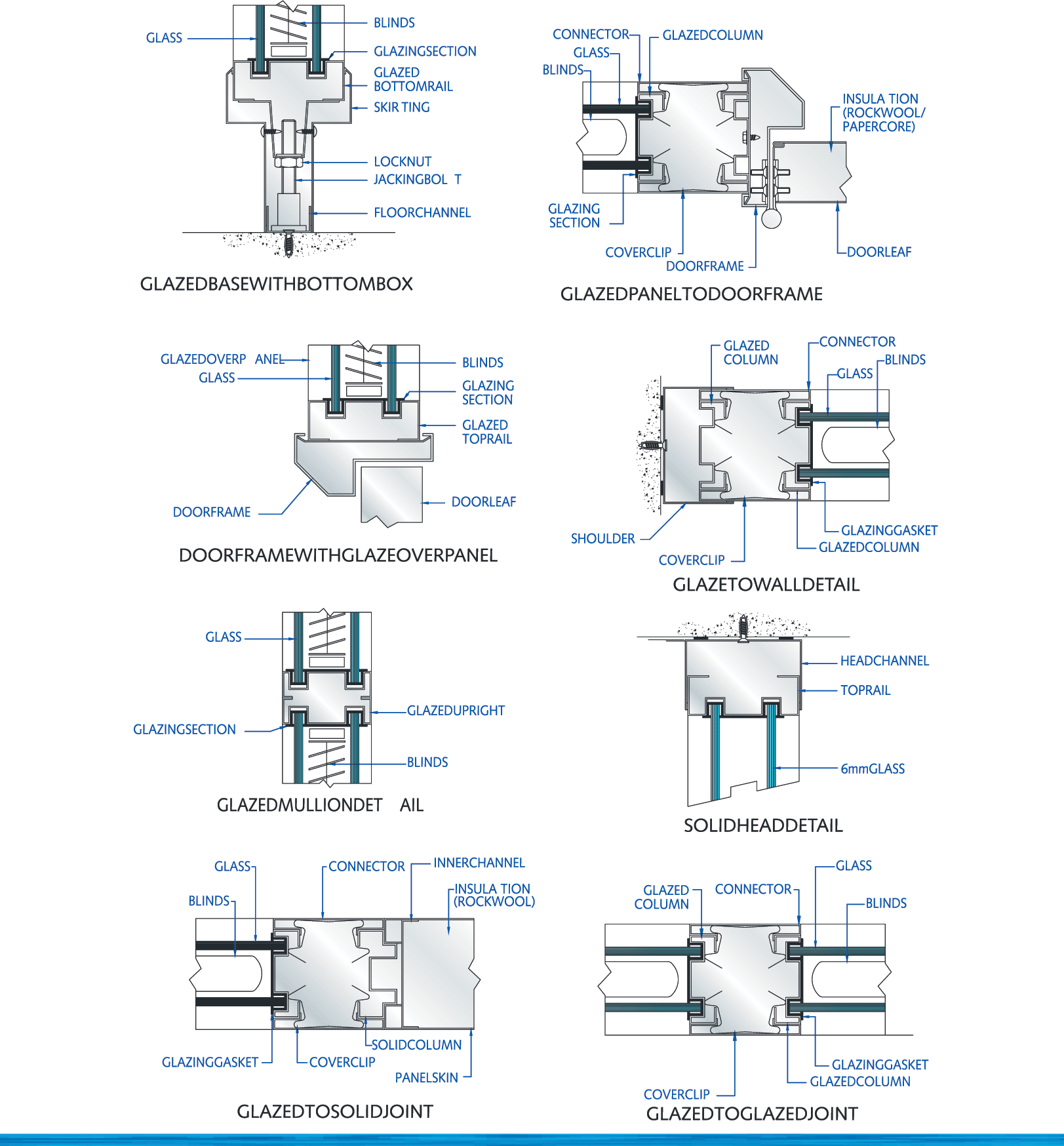

The double glazed (Octa-P range) of office partitions is used for a better noise-reduction and other features like the integrated blinds etc.

1. SOLID PANEL

  • Width: 1000 mm & 1200 mm (Standard)
  • Height: Upto 3000 mm Single Lift
  • Insulation: Rock Wool, PUF, Papercore Honeycomb
  • Thickness: 80 mm

2. GLAZED PANELS

  • Width: 1000 mm, 1200 mm (Standard)
  • Height: Upto 3000 mm (Standard)
  • Glazing: Double
  • Thickness: 80 mm
  • Types: Fully Glazed, Half Glazed, Top Glazed & Mid Glazed

3. STEEL DOORS / GLAZED DOORS

  • Width: 900 mm / 1000 mm / 1200 mm Module
  • Height: 2100 mm Module / 2500 / 2700
  • Thickness of Leaf: 44 mm / 50 mm

4. ELECTRICAL CUTOUTS

Electrical service can be installed in the hexa 80 partition systems by removing the joint cover, skirting etc & exposing wirings

5. Weight

Solid panels have an average weight of 30 kg / sq.m.

Below is the details of sections used:

1. SOLID PANEL

  • Width: 1000 mm & 1200 mm (Standard)
  • Height: Upto 3000 mm
  • Insulation: Rock Wool, PUF, Papercore Honeycomb
  • Thickness: 80 mm

2. GLAZED PANELS

  • Width: 1000 mm, 1200 mm (Standard)
  • Height: Upto 3000 mm (Standard)
  • Glazing: Single
  • Thickness: 80 mm
  • Types: Fully Glazed, Half Glazed, Top Glazed & Mid Glazed

3. STEEL DOORS / GLAZED DOORS

  • Width: 900 mm / 1000 mm / 1200 mm
  • Height: 2100 mm Module / 2500 / 2700
  • Thickness of Leaf: 44 mm / 50 mm

4. ELECTRICAL CUTOUTS

Electrical service can be installed in the hexa 60 partition systems by removing the joint cover, skirting etc & exposing wirings

5. Weight

Solid panels have an average weight of 30 kg / sq.m.

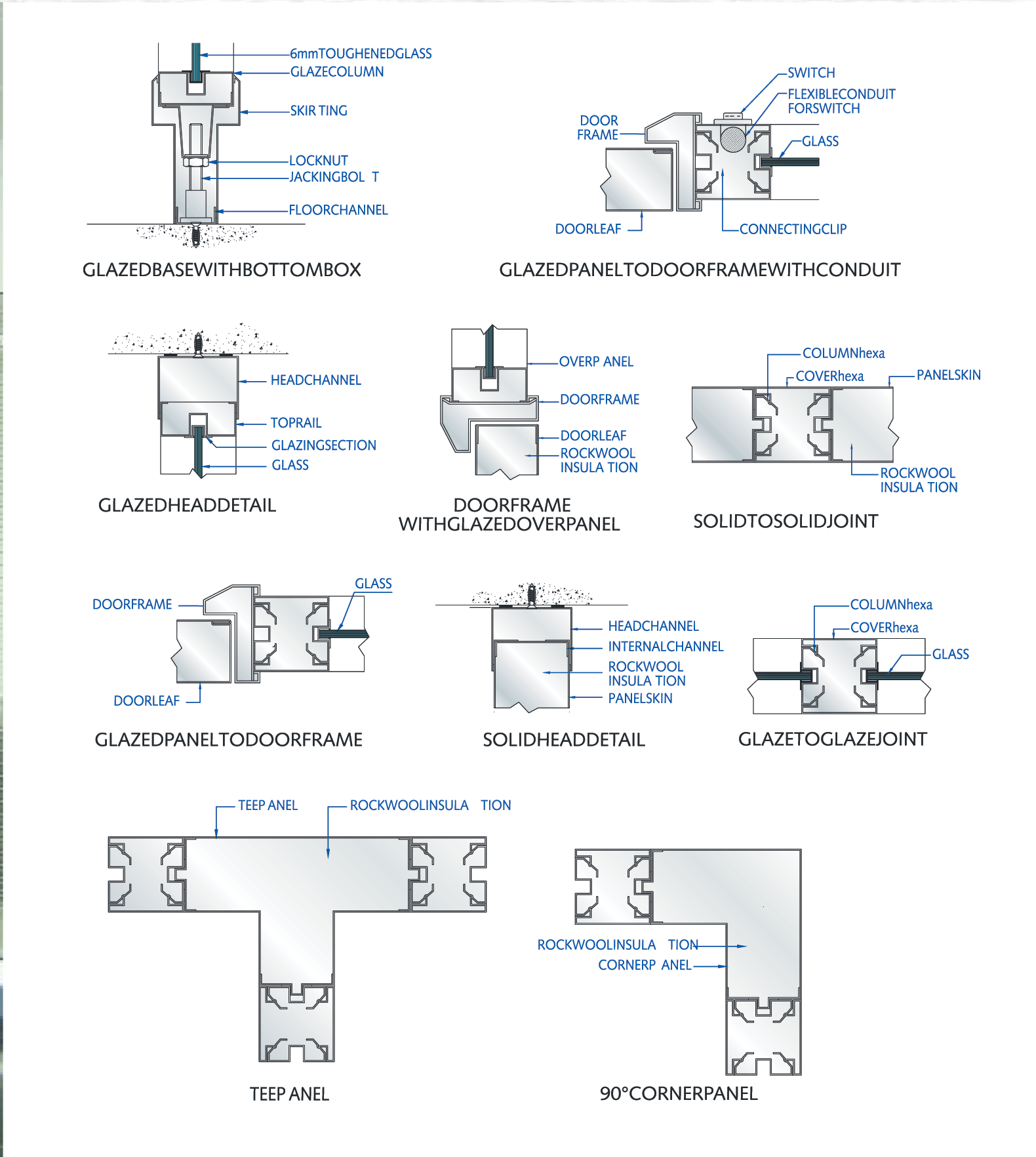

The single glazed partitions (Hexa-P range) is suitable for general offices with below 34 details of sections:
