Lab Furniture

Lab Furniture

We at GMP offers Customer Single window Solutions for all their facility needs. An important component in setting up a Laboratory in Clean room industry is Modular Laboratory Furniture and Equipment’s.

At GMP we manufacture at our facility Metal Laboratory furniture’s in various modules and combination, following best of industry practices and incorporating field experience to setup a modern laboratory. Our products are customise to suite customer requirements and available spaces to give a most optimum utilization of area. We specialize in setting up Laboratory for Quality control labs, Testing labs, R&D labs, Microbiological Labs, Instrumentation Labs, Sampling labs to name a few.

GMP Follows Standards



Constantly raising our standards, GMP Technical Solutions Follows Standards of ASHRAE-110 & SEFA 8.in creating humane, safe, and effective laboratory environments. By joining other industry leaders, we hope to further improve our world-class products and services to better serve our clients.



GMP Free Planning Design

WE MAKE IT EASY:
GMP not only builds “the professional’s bench“, our planning and design team can develop a comprehensive furniture system for your entire work environment...

GMP engineers can help you design the optimum layout for your specific needs whether it's a simple corner test bench or a sophisticated layout for an entire laboratory setup…Or if you have the design ready, reach us to get a quote.

BEST LAB PRODUCTS TO DO BEST EXPERIMENTS.

GMP is Committed To Providing The Best Lab Products That Deserve Quality Which Makes Your Work Better….

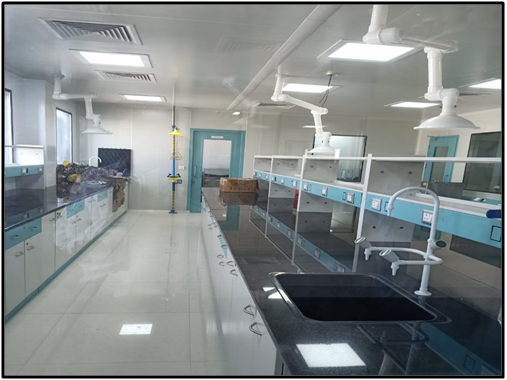

GMP working benches / tables are manufactured with GPSP Sheets duly powdercoated. The table top is made of Granite/ epoxy resin or phenolic resin which resists heat, water, mostchemicals and corrosion. Partitions of the shelf make the equipment and tools easy to display. Meanwhile, the laboratory table leads the convenience for people both side to get things on the shelf.The modules are so designed that they can be fitted either to the pedestal system or theflexible system with considerable ease. Drawers & Shutters are with S.S. or Brass handle. It comes with electrical raceway suitable for  lab application including data & telephone provision.

Technical Specification:

  • For storing devices and chemicals in accordance with DIN EN 14727
  • For working heights of 750 mm & 900 mm
  • Not suitable to store the flammable liquids, gas cylinders and self-igniting or self-decomposing
  • Not suitable for storing acids and alkalis

Large no. of available variants for fast access and safe storage in the laboratory

For maximum flexibility in the laboratory, we offer a large variety of cabinet / under bench unit. Pushed in under bench units (Either Movable or on Plinth) with their own supporting structure.

Specialized Accessories:

The Aluminum flush type handles without joints are resistant to chemicals and easy to clean.  Our suspended cabinets are fastened to the service spine or wall without a visible gap.

Hinges, Lock & Slider:

We do provide the”Hattich / Hafele” German make Hinges, Lock & Sliders, to get the long life service.

Surfaces are well protected:

We do provide the Epoxy duly powder coated GPSP sheet with minimum coating layer of 80 Microns.

Material of construction:

  • Module Panel : Min. 20 SWG GPSP Sheet

  • Module Drawer & Shutter Panel: Min. 22 SWG GPSP Sheet

  • Adjustable Shelves: Min 20 SWG GPSP Sheet.

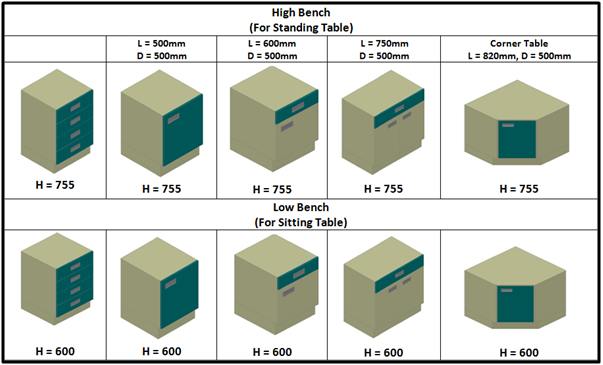

Pedestal fame modules

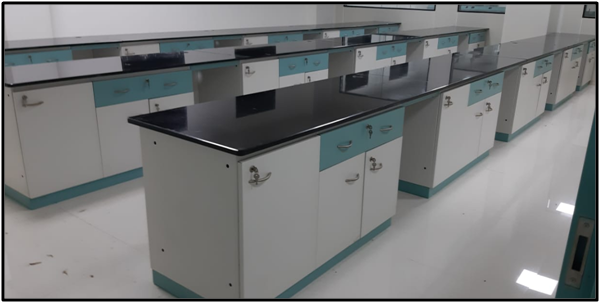

Plinth Mounted Modules

Type Of Bench / Tables

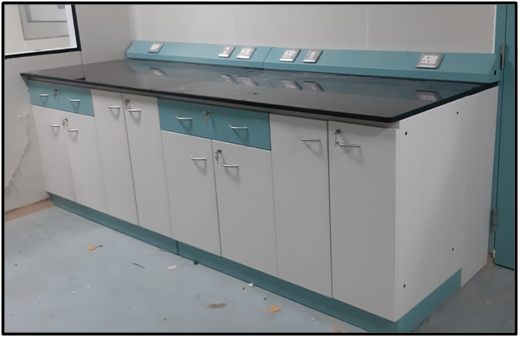

Peripheral / Linier Table:

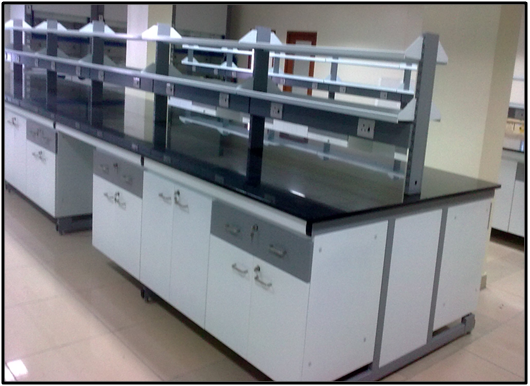

Island Table

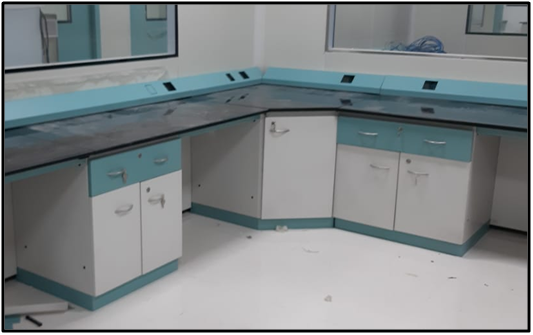

Corner Table



Material of Construction:

  • StoragePanel : Min. 20 SWG GPSP Sheet

  • Storage doors/shutter Panel: Min. 22 SWG GPSP Sheet

  • Adjustable Shelves: Min 20 SWG GPSP Sheet

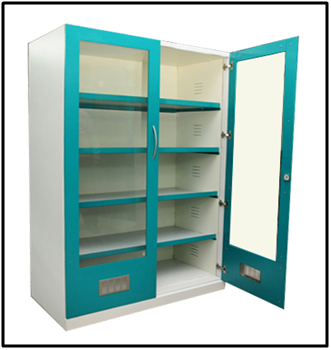

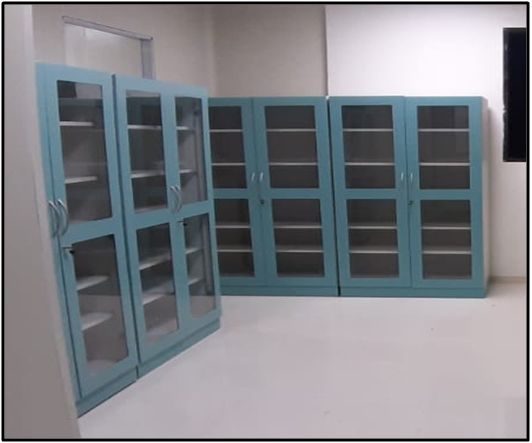

Vertical Floor Mounted Storage

Storage will consist of base frame with SS hinges ,5mm toughenedglass doors / Solid doors , SS Handles & adjustable shelves.

Available size: 900 mm x 1800 mm x 450 mm.



Wall Mounted Storage



Chemical Storage

The storage cabinet is ideal to store Toxic laboratory solvents & chemicals inside the laboratories, P. P. trays are provided for long life of shelves, ,Doors  are provided with 5mm toughened/ Safety  glass , In some of the critical chemical application, Exhaust port on top along with blower  is been provided  & their size can be altered as per Requirement.

Material of Construction:

  • StoragePanel : Min. 20 SWG GPSP Sheet

  • Storage doors/shutter Panel: Min. 22 SWG GPSP Sheet

  • Adjustable Shelves: Min 20 SWG GPSP Sheet

  • Inner lining Sheet (For, Chemical Storage): Phenolic Resin Laminated Construction

  • Adjustable Shelves (For, Chemical Storage, Chemical Storage Unit): Poly Propylene



The anti-vibration table is designed for use in the laboratory or metrology room to provide suitable working conditions for devices that are sensitive to vibrations and shocks. The table comprises two separate parts – An internal working surface consisting of a large granite slab mounted on rubber shock absorbing mounts. An external service table with steel frame and adjustable leveling feet.

Application: For highly sensitive instruments like Electronic Balance.



Laboratory fume hoods are a type of ventilation system with the primary function is to exhaust chemical fumes, vapors, gasses, dust, mist, laboratory hoods, SS fume hood and aerosol. Fume hoods also serve as physical barriers between reactions and the laboratory, offering a measure of protection against inhalation exposure, chemical spills, run-away reactions and fires.

A typical fume hood has a box like structure with a moveable sash window. Experimental procedures are performed within the hood which is consistently and safely ventilated, usually by means of an extract blower and ductwork. Chemical fumes exhausted and diluted many times over in the atmosphere and has a negligible effect to human health. When environment concerns are of importance, an extract treatment system, often referred to as a scrubber is installed to remove most of the vapors from the exhaust air stream.

The hood functions by maintaining a relatively negative pressure in the interior of the hood to prevent any contaminant from escaping while drawing air in through the hood opening at a consistent rate. A suitable hood face velocity (the speed at which air is drawn into the hood) is of importance to the safe and effective operation of a fume hood. While excessive face velocities can often result in turbulence and reduce containment, insufficient velocities can also compromise fume hood performance. However it is important to check with local safety regulations on the face velocity recommendation before using the fume hoods.

Std Bench Type Of Fume Hood

Std. Bench type of Fume Hood is characterized by a std. worktop height which results in a std. working height for the operator. This allows Std. height of equipment to be installed and mounted in the work chamber, tested in acc. with EN 14175.



Low Bench Type of Fume Hood

Low Bench type of Fume Hood is characterized by a low worktop height which results in a large working height for the operator. This allows tall distillation equipment to be installed and mounted in the work chamber, tested in acc. with EN 14175. Rest of the items remains same as Std. Bench Type of Fume Hood.



Walking Type Of Fume Hood

Walking / Floor mounted fume hoods are used for applications which require large apparatus. As the name implies, these hoods are floor mounted without any work surface. This facilitates the transfer of equipment and materials into, and out from the hood.



Along with above product list , GMP will offer following accessories.

Spot Extractor

It works as a local exhaust system and finds application in laboratories, pharmaceutical unit & production environments. Our range of Laboratory Fume Extractor Dome holds the capability to ventilate contaminated air in order to protect both user and workplace safety from harmful fumes. It comes with exhaust blower with PP / FRP Piping.



Peg Board

Every lab has a vast amount of glass – flasks, tubes, funnels, and the like that's always in use and needs to be cleaned often and drained and left to dry. We are offering acrylic & Stainless steel Peg board which can fit on wall / furniture.

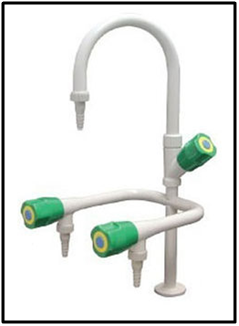

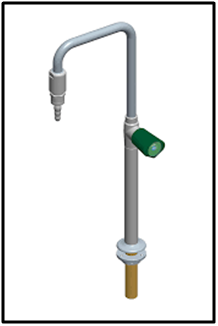

Single / Three Way Water Tap

Single Swan Goose Neck Water Valve available in single & three way outlet.

Single /  Three Way taps are made from Brass with Full Epoxy powder coated in grey colour. Tested for  Full turn (life cycle test) upto 3,00,000 cycles in Knob to avoid leakage.

PP / SS Sink

PP sinks are used in scientific laboratories, medical centers, college labs, Pharmaceutical industries, because of their competence to withstand most of the chemicals.

Also stainless steel sinks with drain board are use in laboratories where less chemical is used. Available in diff sizes.
